2016 Husmann Crusher /HLI 1225 E/S

Brand:                                       HUSMANN

Model:                                       Crusher /HLI 1225 E/S

Serial Nr.:                                  11518

Year of construction:                 2016

Drive:                                         200 kW

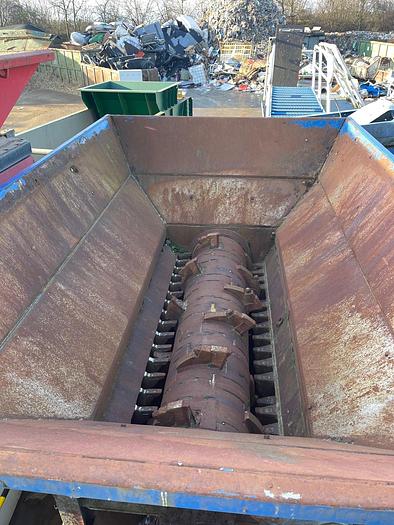

Crusher:                                    Single-axis crusher with adjustable speed of up to 36

                                                  rpm.

Blade work:                              16 knives, blade width 100 mm

External diameter of shaft:       660 mm

Internal diameter:                     480 mm

Shaft length:                             2.560 mm

Cutting facility opening:            1.200 x 2.560 mm

Drive:                                        electro-hydraulic, with automatic, adjustable reversing

                                                 device. The slow-running drive can be operated with

                                                 400 bar sauce pressure, thereby transmitting a torque

                                                 of 110,000 Nm.

Dimensions:

Height:                                      5800mm

Width:                                       5039 mm

Length:                                     2800 mm

Weight:                                     21 t.

Terms of delivery: EXW Germany
