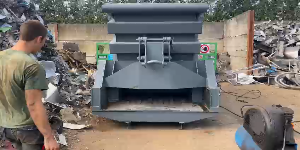

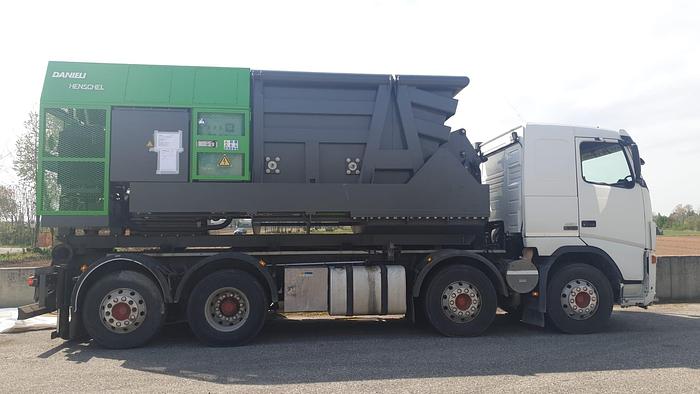

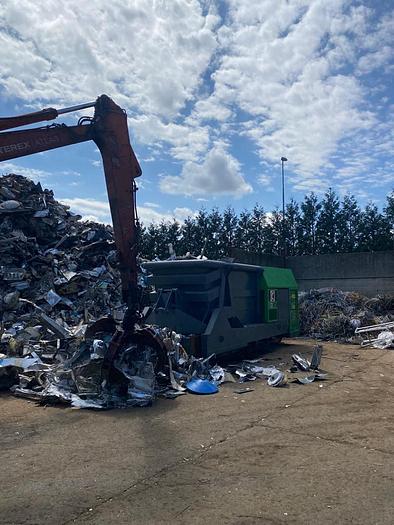

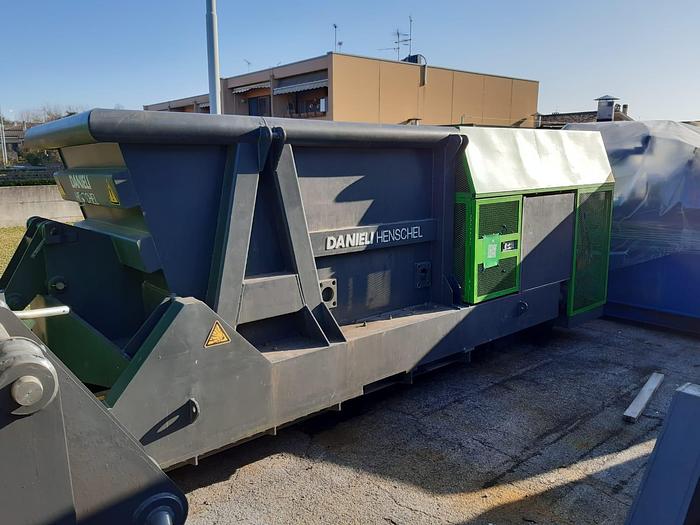

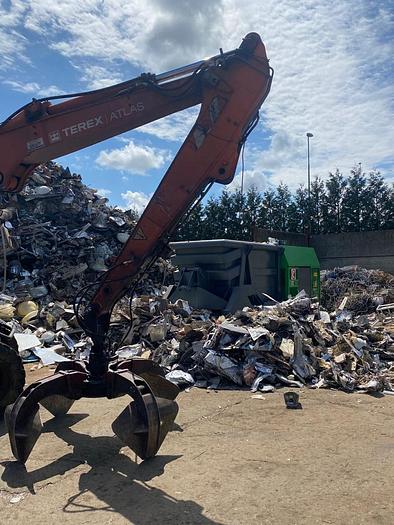

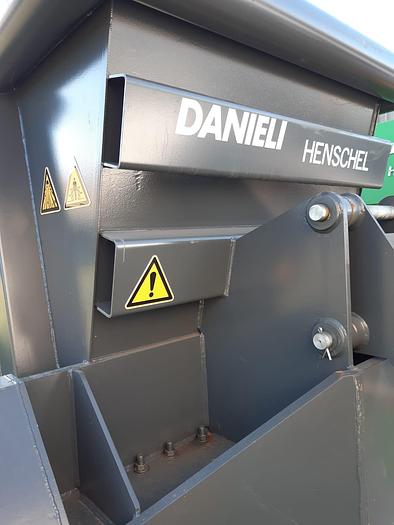

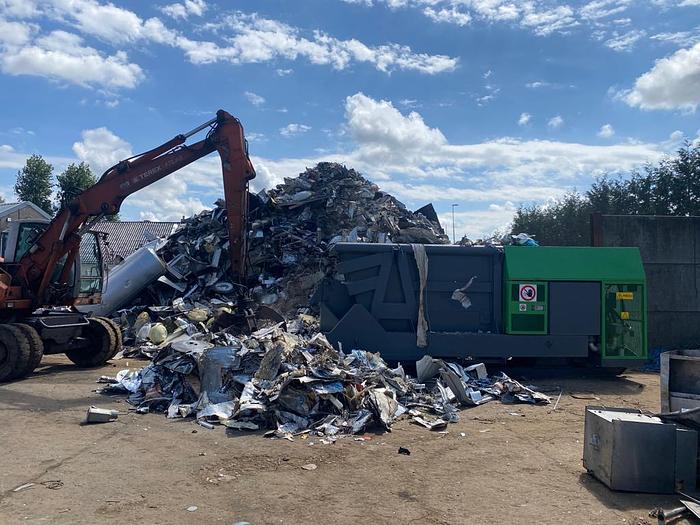

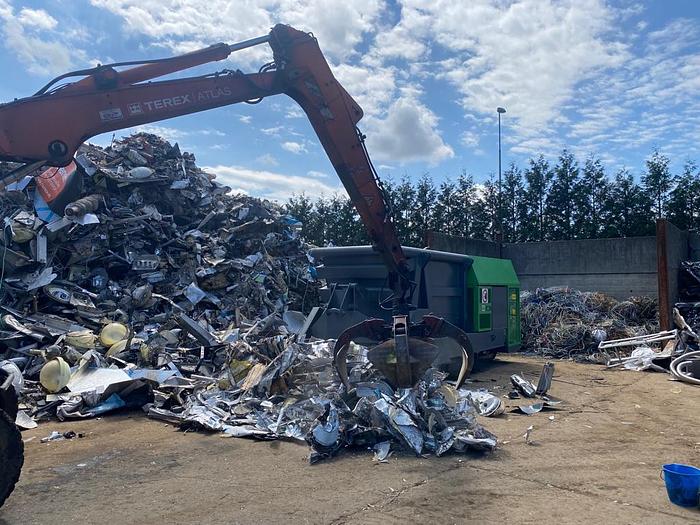

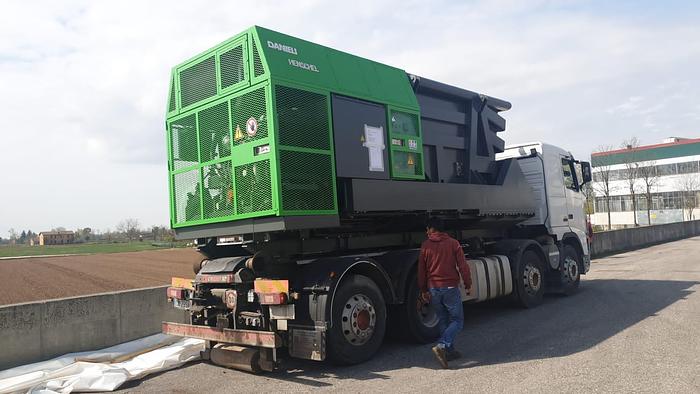

2014 Danieli Henschel Compact 800

Cutting force                                                                      800 t

Clearance below blade                                                      930 mm

Clearance below blade                                                      1 075 mm

Cutting width                                                                      1 500 mm

Blades width                                                                      1 540 mm

Shearing height                                                                 400 mm

Mobile blade angle of inclination                                       2 × 12°

Shear ram stroke                                                              1 150 mm

Presser force                                                                    100 t

Presser height                                                                   1 850 mm

Clearance of staged pressing ram        1 100 mm / 1 550 mm / 2 000 mm / 2 450 mm

Pressing ram stroke                                                          1 000 mm

Cutting rate up to                                                               2 cuts / min

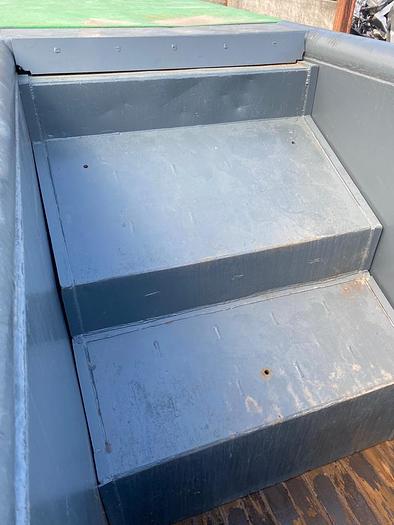

Feeding hopper Length

Length                                                                               2 450 mm

Width                                                                                1 600 mm

Depth                                                                                2 380 mm

Power

Maximum power (thermal)                                       103 kW (140 h) t 2 500 rpm

Effective power (thermal)                                         90 kW (122 hp) at 2 200 rpm

Displacement                                                                  4 040 cm³ _ 4 cylinders

Alternator                                                                        28 V _ 55 A

Starter                                                                            24 V _ 4 kW

Indicative consumption (fuel)                                        12 l/h

Diesel tank capacity                                                      90 l

Hydraulic system

Hydraulic oil tank capacity                                            1 500 l

Variable displacement pump(s) - Max flow rate _

Max operating pressure                                                500 l/min _ 400 bar

Piston pump(s) - Max. operating flow rate                    500 l/min
