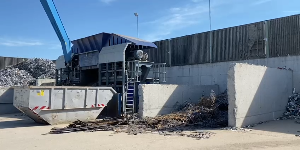

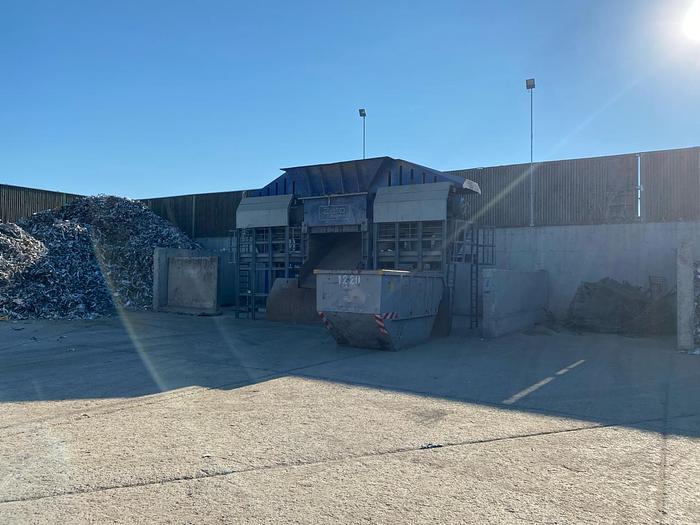

2018 Zato Blue Devil GFS 5000

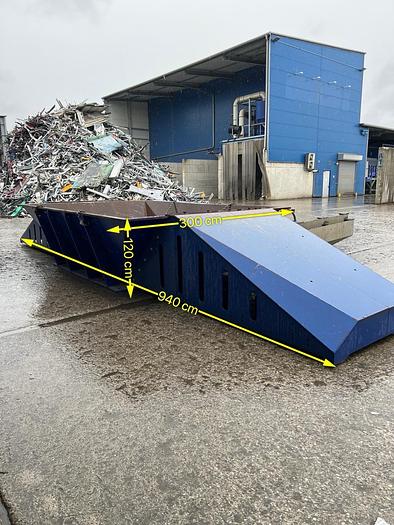

(A)   Inlet hopper

Hopper weight:                                                              5 t.

Hopper capacity:                                                           7 cbm

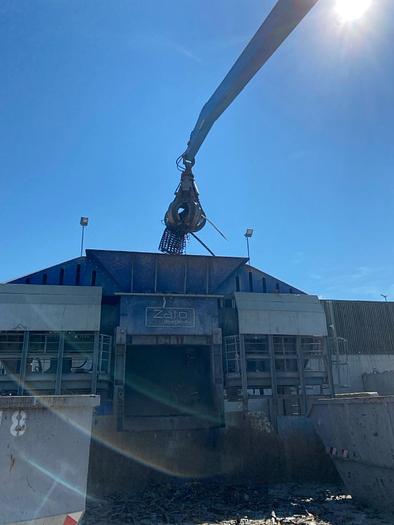

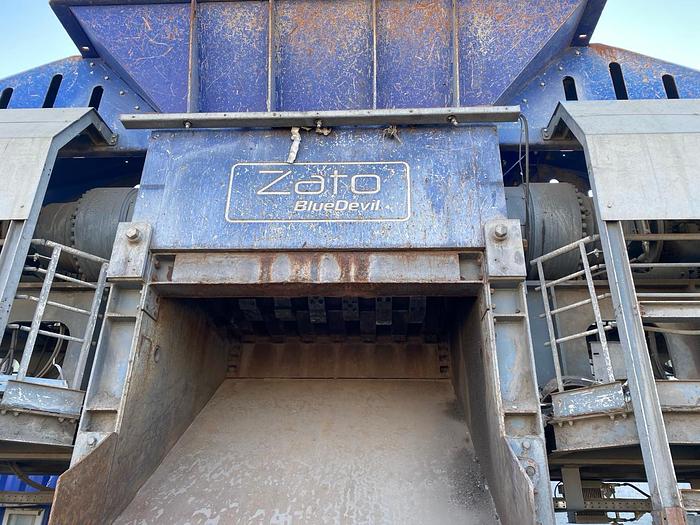

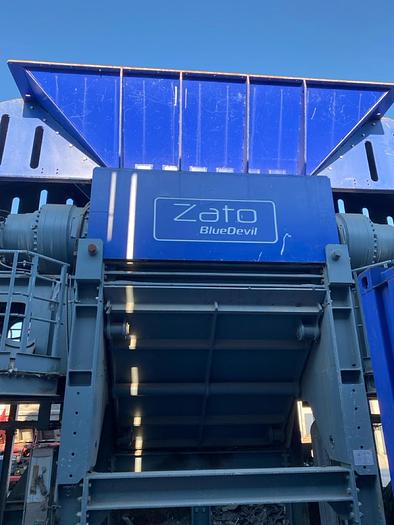

(B)    Main shredding body

Main body dimensions:                                              2350x2.790x950 (H)mm

Mein body weight:                                                      51 t.

Shaft´s diameter:                                                        980 mm

Shaft´s weight:                                                             8,6 fast+8,1 slow (t)

Shaft´s speed:                                                              4-5,6 rpm

Shaft´s speed(anticlock-wise)                                   2,5-3,4 rpm

Blades:                                                                           nr. 42 fast + 36 slow

Blades width:                                                                160 mm

Opening dimensions:                                                   2.085 x 1.850 mm

Exagonal Blades Support:                                            nr. 7 fast + 6 slow

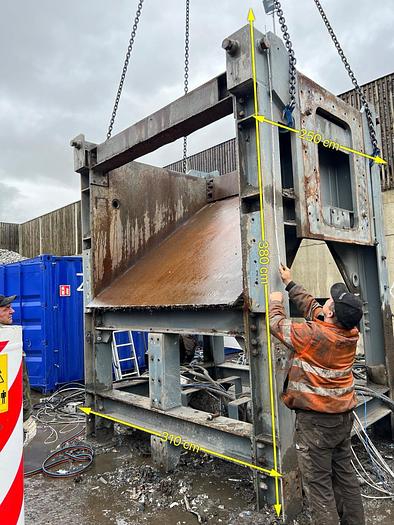

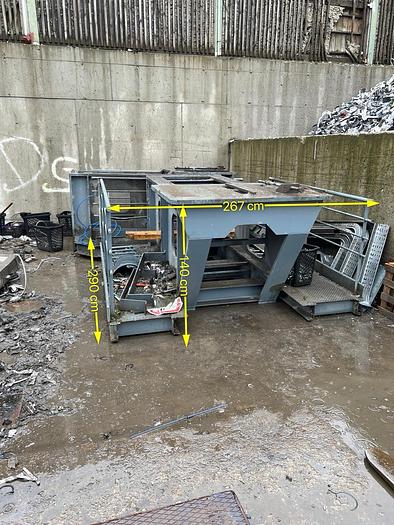

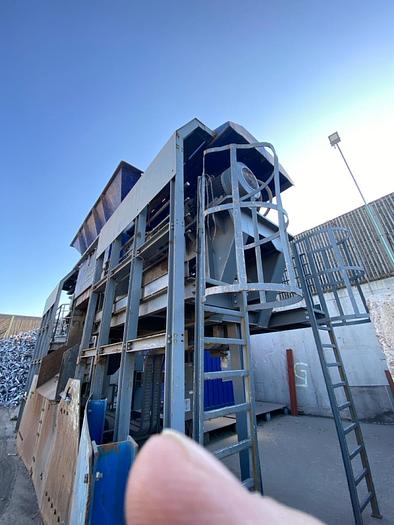

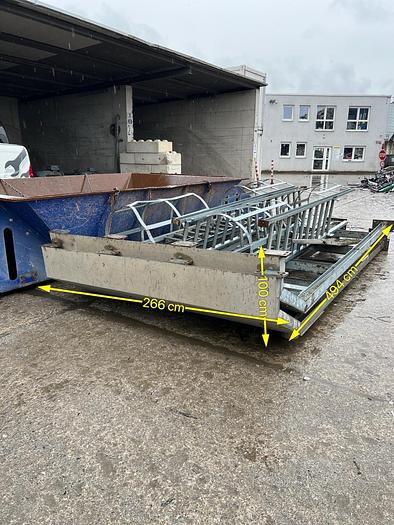

(A)   Support deck

Space on the ground:                                                   2.510 x 2.942 mm

Support structure:                                                        10 t

Global machine weight:                                               74 t

Container weight:                                                         8 t

Machine envelope:                                                       8363x3334x5840 (h) mm
