Henschel

Technical Specifications:

Feed Opening

• Width: approx. 1,200 mm
• Height: approx. 600 mm

Discharge Opening

• Width: approx. 600 mm
• Height: approx. 200 mm

Drive System

Driven by two electric motors through:

• 2 elastic couplings
• 2 hydraulic couplings
• Intermediate shaft system
• V-belt transmission to common rotor drive shaft

Electric Motors

• Quantity: 2
• Power: 250 kW each
• Speed: 1,485 rpm

Hydraulic Couplings

• Slip: approx. 3 %

V-Belt Pulleys

• 2 × SPC pulleys, 12 grooves
• Diameter: 355 mm
• 1 × SPC pulley, 24 grooves
• Diameter: 1,420 mm

Transmission Ratio

• 1 : 4

Lubrication System

• Grease lubrication and oil circulation lubrication

Oil Lubrication Unit

• Tank capacity: approx. 25 litres
• Pump power: 0.18 kW
• Flow rate: 2.5 l/min

Oil Preheating

Electric heating element: 0.6 kW

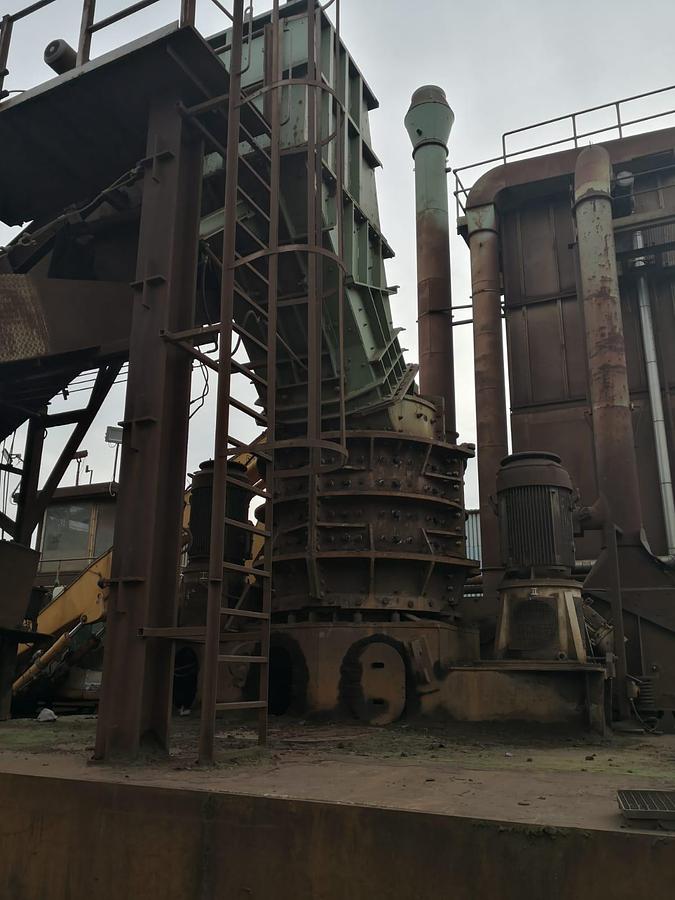

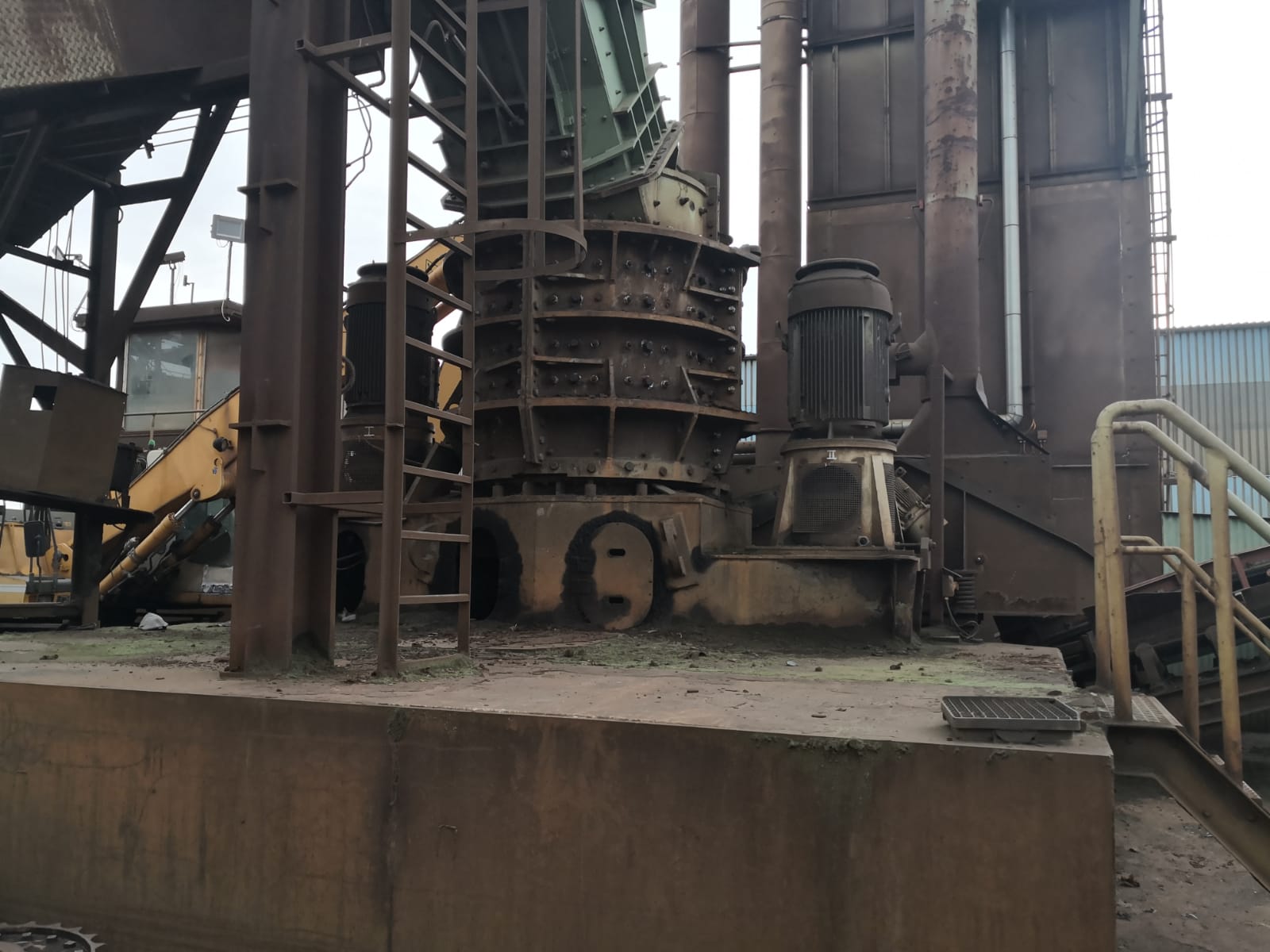

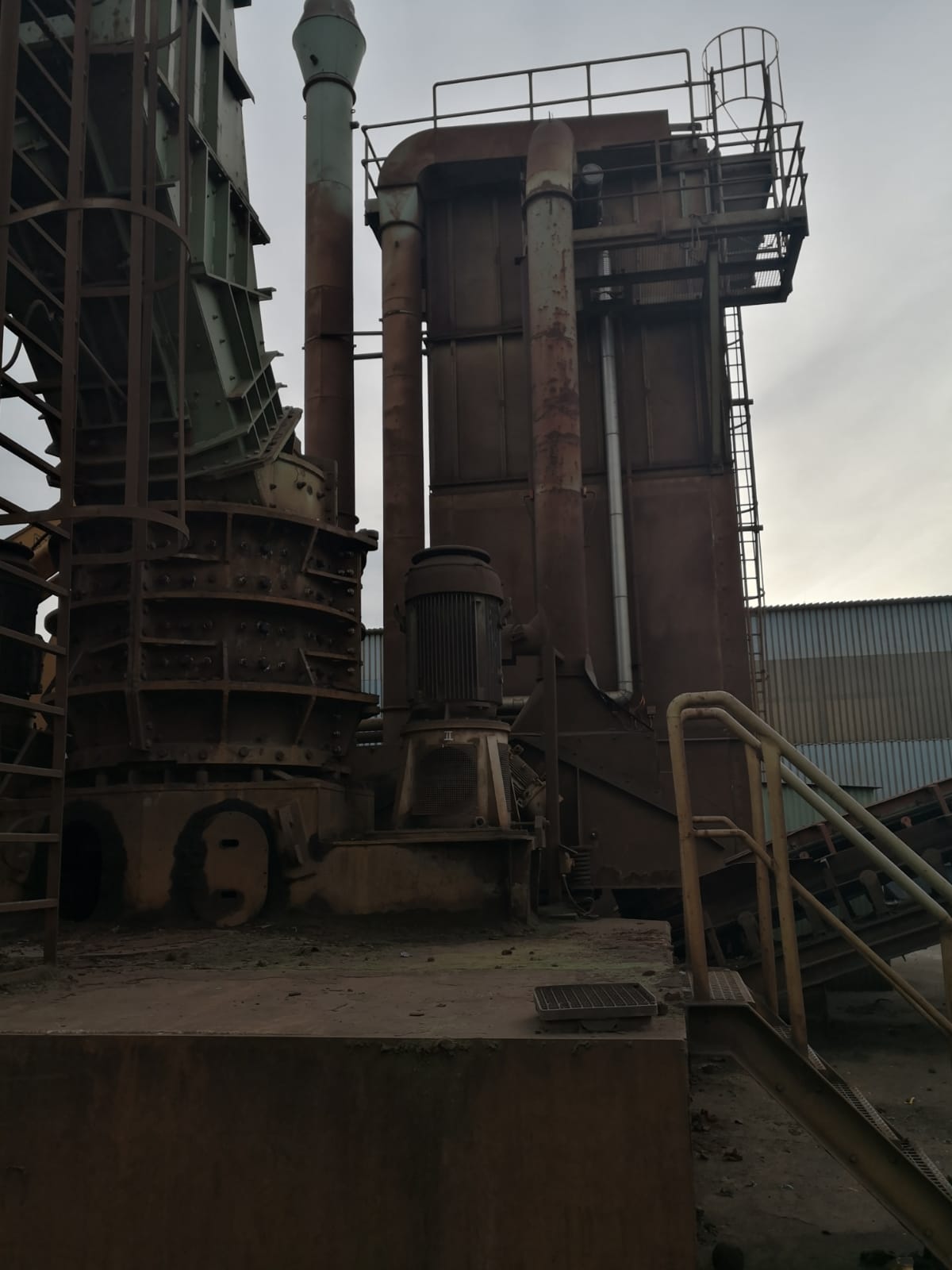

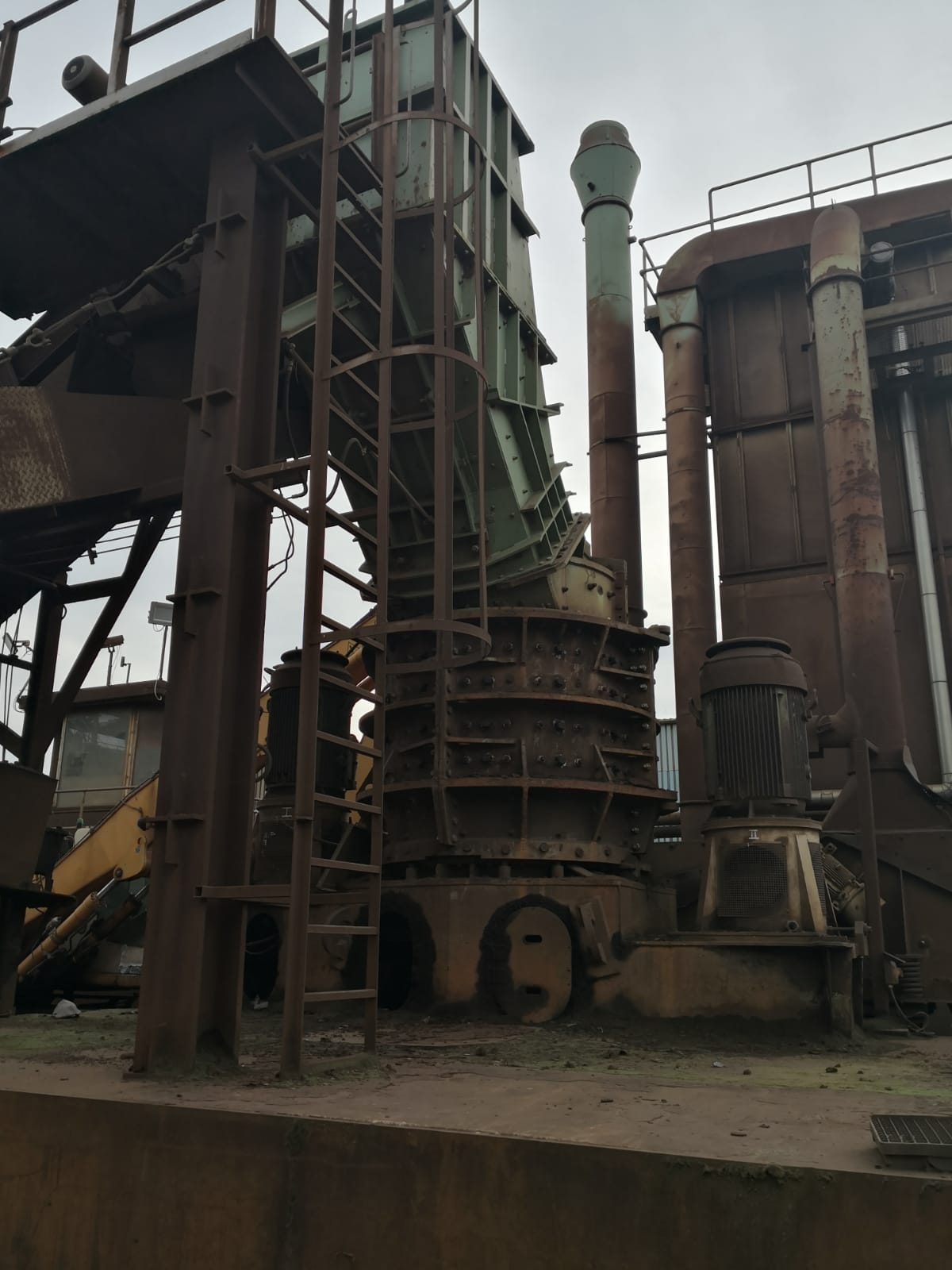

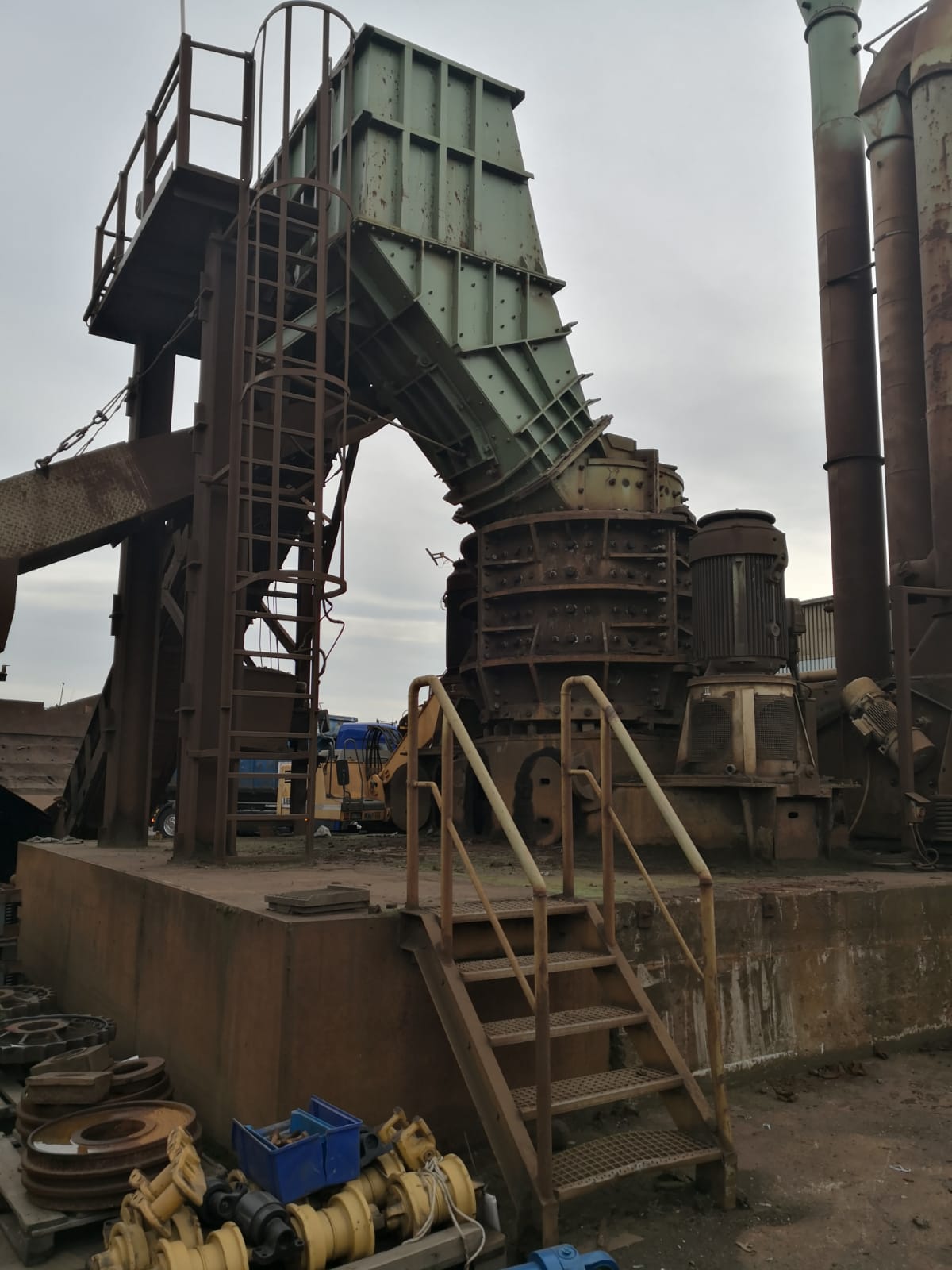

Shredding Mill:

Housing

• Internal diameter: approx. 1,700 mm
• Internal height including discharge chamber: approx. 2,100 mm

Weight

• Total machine weight including feed chute, inlet and discharge hood:
• Approx. 42 tons
