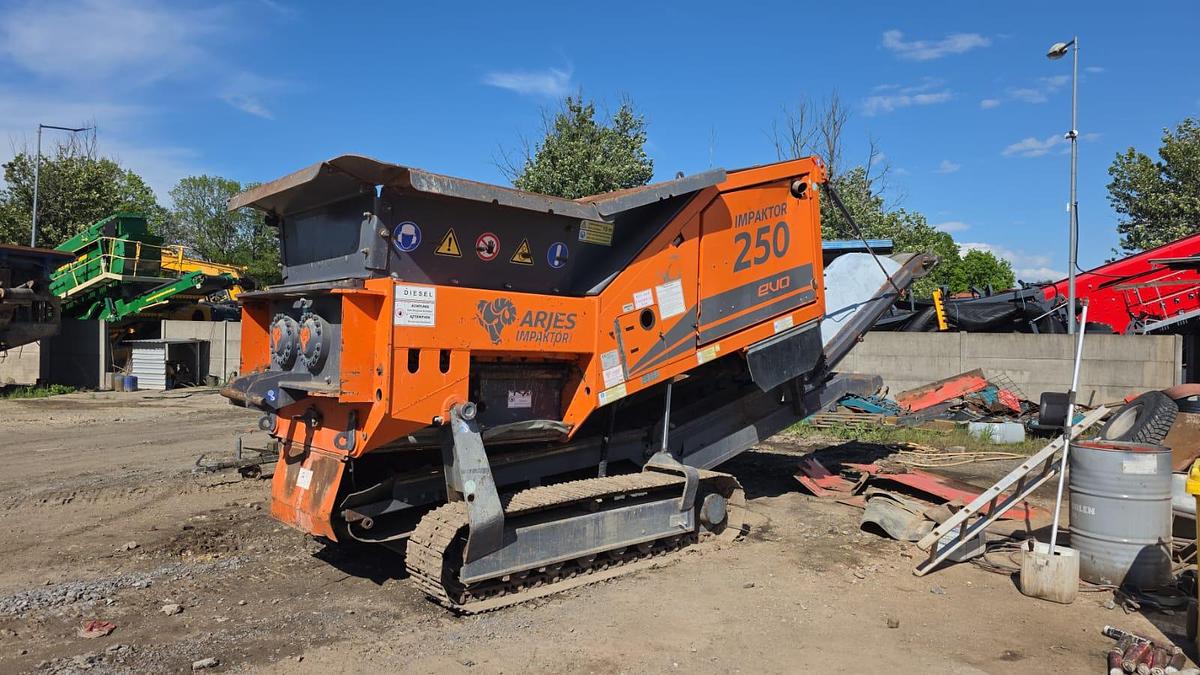

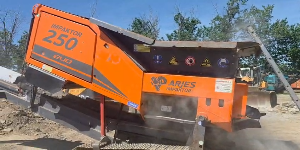

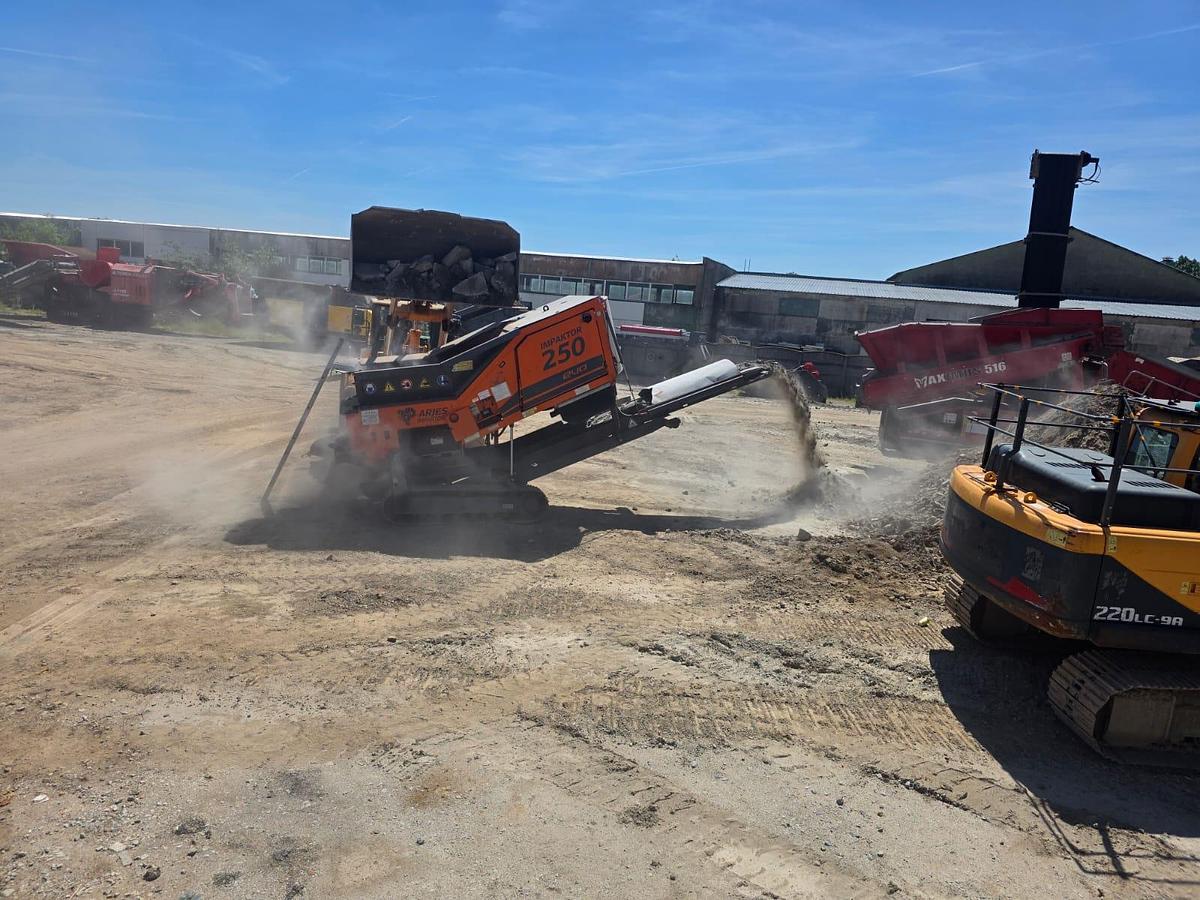

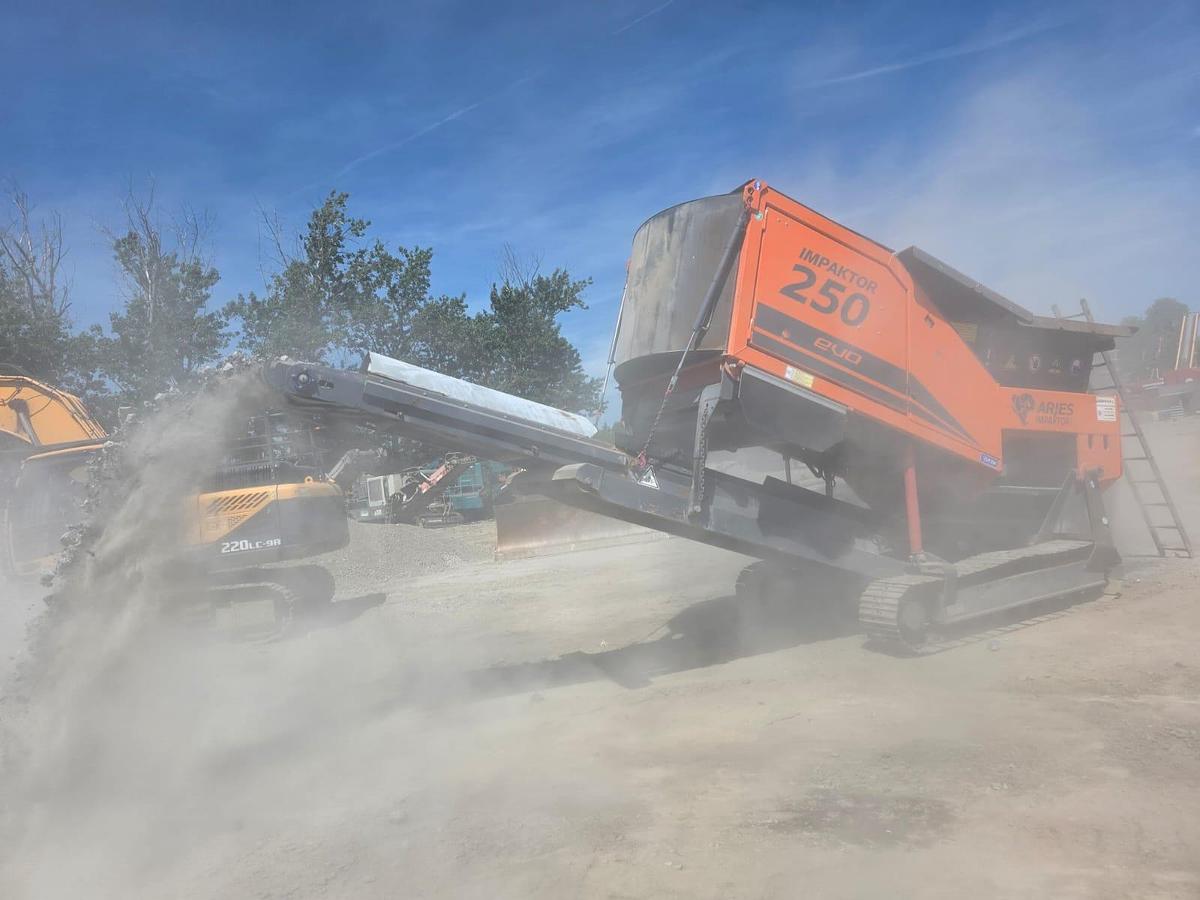

2023 Arjes Impaktor 250

2. Technical Specifications Sheet

Component Group

Technical Parameter

Value / Specification

Drive Unit (Antrieb)

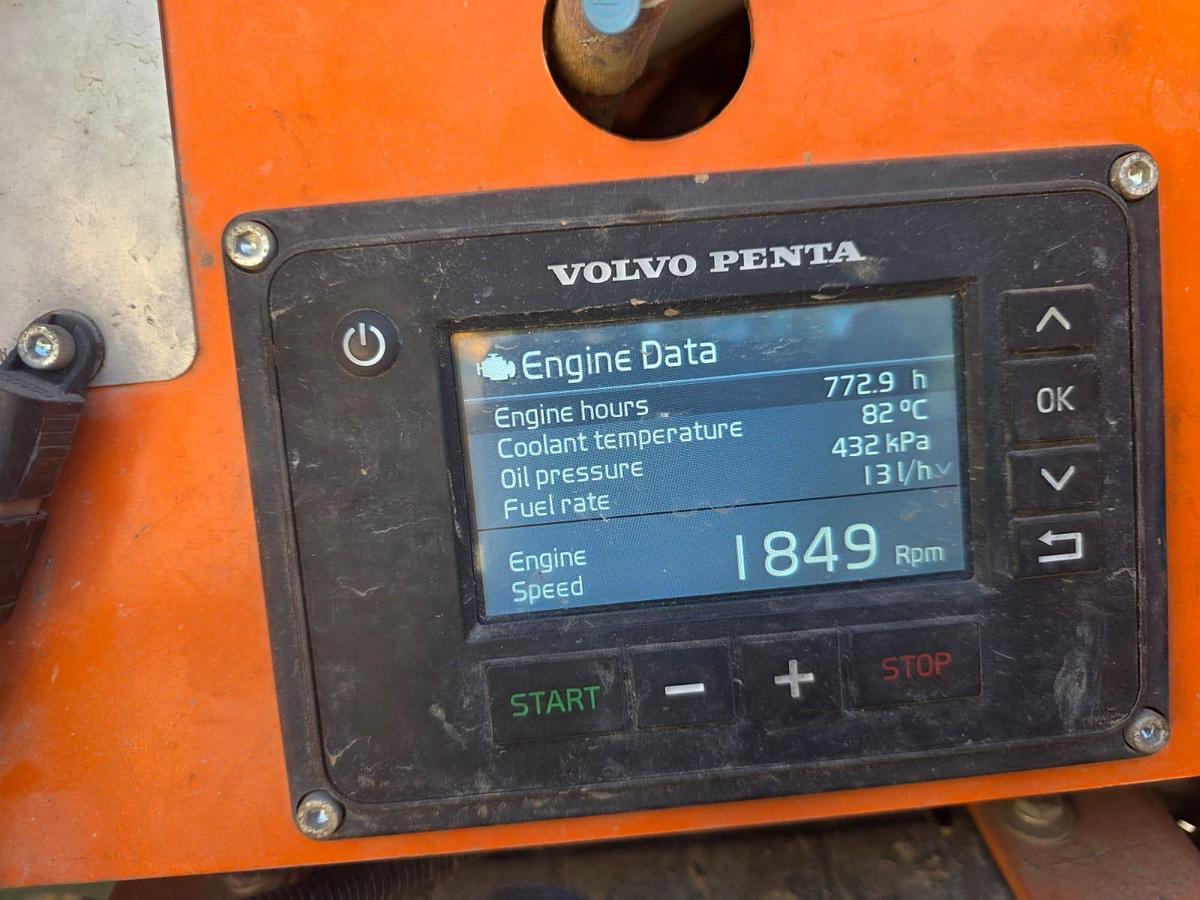

Engine Type / Manufacturer

Volvo Penta Diesel (Stage V / Tier 4 Final)

Drive Unit (Antrieb)

Engine Output Power

129 kW / 175 HP

Drive Unit (Antrieb)

Fuel Tank Volume

ca. 285 - 360 Liters

Shredding Unit

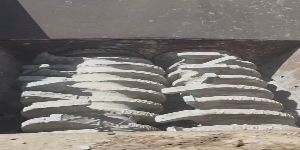

Shredding Mechanism

Asynchronous Mobile Twin-Shaft System

Shredding Unit

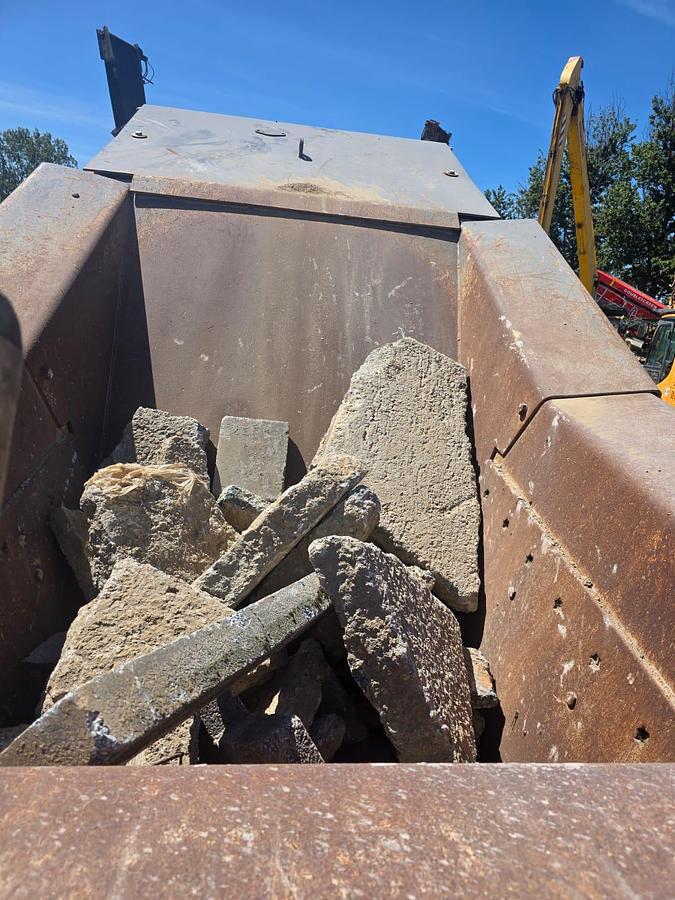

Hopper Volumetric Capacity

2.25 m³

Shredding Unit

Shaft Operational Length

1,500 mm

Shredding Unit

Shaft Diameter

680 mm

Shredding Unit

Shaft Rotation Speed Range

11 – 35 rpm (Material-protective low speed)

Shredding Unit

Maintenance Feature

Mechanical Quick-Change Shaft Cassette System

Discharge System

Overband Magnet Separator

Integrated permanent magnet (Height-adjustable for FE metal separation)

Discharge System

Max. Conveyor Discharge Height

approx. 3,200 – 3,450 mm

Discharge System

Conveyor Belt Width

800 mm

Logistics & Transport

Chassis Options Fitted

Combined Track-mounted (Kettenfahrwerk) & Hook-lift frame

Logistics & Transport

Operational Dimensions (LxWxH)

approx. 7,300 x 2,300 x 2,800 mm

Logistics & Transport

Total Operational Net Weight

approx. 13,500 – 14,000 kg
